Precision Engineered Hygienic Systems for Industrial & Commercial Applications
At Stingray Systems, we specialize in designing and delivering high-performance hygienic systems built for demanding environments. From our industry-leading tepid water eyewash stations through to barrier-free models, every product in our line features superior components, precision engineering, and rigorous durability — ensuring reliable performance when it matters most.
We don’t just supply equipment — we craft complete turnkey solutions tailored to your facility’s safety, sanitation, and operational needs. Whether you require standard eyewash stations or customized barrier-free installations, Stingray Systems delivers quality, compliance and long-term value.
Factory Supplied Products

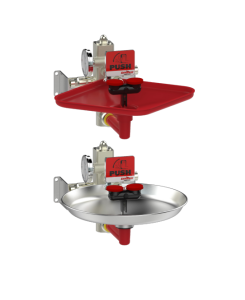

Series T2000 Eye/Facewash
Description
The Stingray Systems Series T2000 Eye/Facewash is a fully integrated emergency fixture designed to deliver reliable ANSI-compliant tepid water instantly in critical situations. Built with Stingray’s signature Tepid-to-the-Core technology, the T2000 line features an ASSE 1071 thermostatic mixing valve housed directly inside the fixture, ensuring consistent tepid output, automatic cold-water bypass, and positive hot-water shutoff to prevent scalding. Its self-draining wash block minimizes stagnant water and bacterial growth, while high-visibility dust-cover-protected spray heads provide immediate, uniform eye and face coverage. Available in both floor-mounted and wall-mounted configurations, as well as standard and barrier-free options, the Series T2000 combines durability, safety, and ease of maintenance—offering one of the most dependable emergency eye/facewash solutions on the market.
Features
- Integrated ASSE 1071 thermostatic mixing valve
- Tepid water output for safe flushing
- Positive hot-water shutoff
- Cold-water bypass
- Self-draining eye/face wash block
- High-visibility dust covers on spray heads
- Symmetrical spray pattern for full eye/face coverage
- Chemical-resistant bowl options (ABS or stainless steel)
- Durable pipe construction options
- ANSI/ISEA Z358.1 compliant
- Included ANSI-compliant identification signage
- Centrally located activation handle
Models
- T2210 floor-mounted standard eyewash
- T2215 floor-mounted barrier-free eyewash
- T2510 floor-mounted standard eye/face wash
- T2515 floor-mounted barrier-free eye/face wash
- T2230 wall-mounted standard eyewash
- T2235 wall-mounted barrier-free eyewash
- T2530 wall-mounted standard eye/face wash
- T2535 wall-mounted barrier-free eye/face wash
Documents

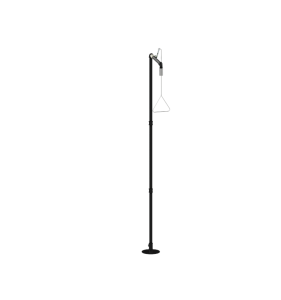

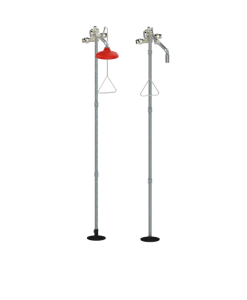

Series T3000 Drench Shower
Description
The Stingray Systems Series T3000 Drench Shower is a high-performance emergency shower system that delivers tepid, ANSI-compliant water flow precisely when needed. It integrates a thermostatic mixing valve (ASSE 1071) directly in the fixture, ensuring consistent safe temperature without requiring a separate external valve. The design is rugged and chemical-resistant, with durable ABS or stainless-steel shower heads, a stay-open ball valve for continuous flow, and a pull-handle actuator for quick activation. Available in both standard and barrier-free configurations, and in wall-mounted, floor-mounted, and cabinet versions, the T3000 provides flexible installation options across a range of facility needs.
Features
- Integrated ASSE 1071 thermostatic mixing valve
- Fixed-temperature control at the shower fixture
- Eliminates need for separate mixing valve
- Chemical-resistant ABS “First Aid Red” shower head
- Optional stainless-steel shower head
- Uniform, non-forceful ANSI-compliant spray pattern
- Nickel-plated stay-open ball valve (ensures continuous flow)
- Stainless steel pull-handle activation
- Choice of epoxy-coated, galvanized, or stainless steel pipe
- ANSI Z358.1 compliant signage included
Models
- T3010 floor-mounted standard drench shower
- T3015 floor-mounted barrier-free drench shower
- T3030 wall-mounted standard drench shower
- T3035 wall-mounted barrier-free drench shower
Documents

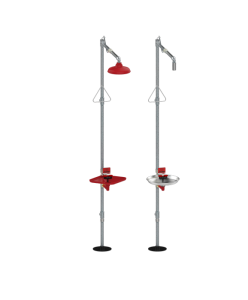

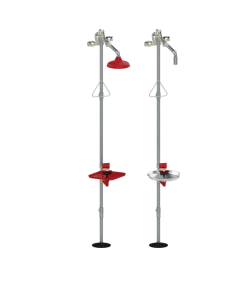

Series T5000 Combination Fixture
Description
The Stingray Systems Series T5000 is a tepid emergency station combining a drench shower and an eye/face wash in one fixture. It includes a built-in ASSE 1071 thermostatic mixing valve within the core, giving you safe, stable tepid water without needing a separate external valve. The dual-purpose unit is designed for durability — with chemically resistant ABS or optional stainless-steel components — and provides uniform, ANSI-compliant spray patterns. The station also includes a self-draining eyewash head (to reduce bacterial buildup), dust covers on the nozzles, a stay-open ball valve for continuous flow, and a pull-handle actuator. Options include both floor- and wall-mounted versions, as well as standard and barrier-free configurations to suit different facility layouts.
Features
- Integrated ASSE 1071 thermostatic mixing valve
- Stable tepid water temperature
- Chemically resistant ABS “First Aid Red” bowl & shower head
- Optional stainless steel bowl and head
- Uniform, non-forceful ANSI-compliant spray pattern
- Self-draining eyewash block
- Dust covers on eyewash nozzles
- Centrally located actuator handle
- Nickel-plated stay-open ball valve (continuous flow)
- Integral spray diverter (balanced flow to eyewash & shower)
- Pull-handle activation (extended stainless steel)
- Choice of epoxy-coated, galvanized, or stainless-steel piping
- ANSI Z358.1 compliant signage included
Models
- T5510 – Tepid to the Core Combination Shower
- T5515 – Tepid to the Core B/F Combination Shower
- T5530 – Tepid to the Core Combination Shower
- T5535 – Tepid to the Core B/F Combination Shower
Documents

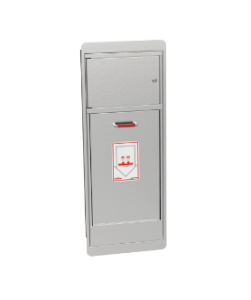

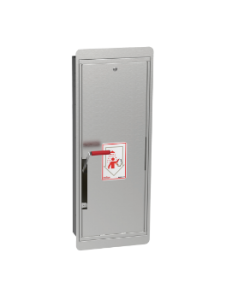

Series S2000/T2000 Shower Only Cabinet Units
Description
The Series S2000/T2000 Shower-Only Cabinet Units are recessed stainless-steel emergency fixtures designed to provide a clean, protected, and easy-to-access drench shower station. The enclosed cabinet keeps the shower head protected from dust and debris, while the recessed design allows the unit to blend into the wall for a clean architectural finish. When the door is opened, the activation linkage opens a stay-open valve to deliver full drench-shower flow immediately. The T2000 versions include an integrated thermostatic mixing valve for tepid water delivery, while the S2000 units operate without a valve and are intended for systems using a separate external mixing valve. These units are built to meet ANSI/ISEA Z358.1 requirements and are ideal for laboratories, clean environments, and modern facilities requiring recessed safety fixtures.
Features
- Recessed stainless-steel cabinet
- Protected shower head enclosure
- Door-linked activation with stay-open valve
- ANSI/ISEA Z358.1 compliant
- Self-draining internal plumbing components
- Clean architectural appearance for modern facilities
- For T2000 units: integrated thermostatic mixing valve
- Positive hot-water shutoff (T2000)
- Cold-water bypass function (T2000)
- Vandal-resistant temperature adjustment (T2000)
Models
- S2236 – Eyewash
- S2536 – Eye/Facewash
- T2236 – Eyewash
- T2536 – Eye/Facewash
Documents

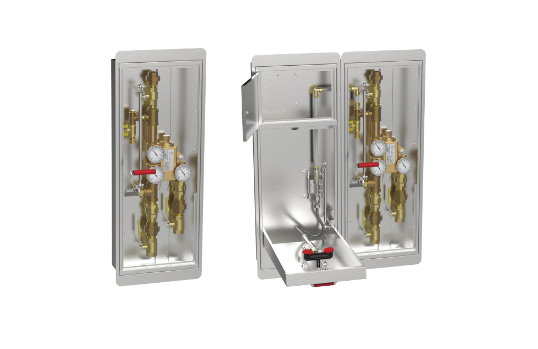

Series T3000/T5000 Shower Only Recessed Cabinet Units
Description
The Series T3000 and T5000 Shower Only Recessed Cabinet Units are designed to house a full emergency drench shower within a recessed stainless-steel enclosure, creating a clean, low-profile installation ideal for modern facilities. These units provide fast, reliable activation with ANSI-compliant spray performance and feature integrated safety components to ensure consistent tepid water delivery when paired with an emergency mixing valve. Built for durability and serviceability, the recessed cabinets protect internal components while offering easy access for maintenance.
Features
- Recessed stainless-steel cabinet
- Drench shower fixture integrated into enclosure
- ANSI-compliant spray pattern
- Stay-open ball valve
- Corrosion-resistant shower head
- Stainless-steel pull handle
- Access panel for service
- Compatible with emergency mixing valves
- Clean, space-saving recessed design
- ANSI/ISEA Z358.1 compliant
Models
- T3036 – Shower Only with Valve in Cabinet
- T5536 – Combination Recessed Cabinets with Valve
Documents

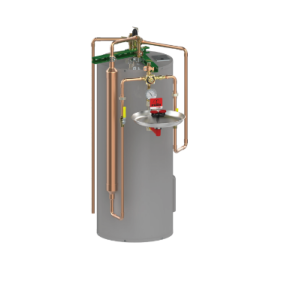

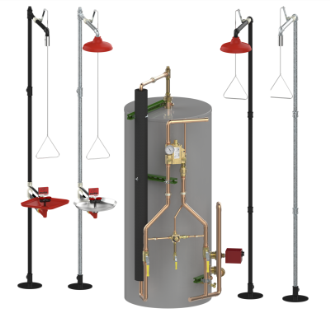

Series S9200/S9300 Tepid Emergency System
Description
The Series S9200 and S9300 Tepid Emergency Systems are fully self-contained heated water supply units designed to provide consistent, ANSI-compliant tepid water to emergency eyewash, drench shower, and combination fixtures. These systems are ideal for facilities that do not have a reliable source of hot water or are located in remote environments. Each unit includes a heated storage tank, thermostatic mixing valves, and integrated safety components to maintain stable water temperature even during fluctuations in supply conditions. Built for reliability, these systems ensure immediate, continuous tepid water flow during emergency use.
Features
- Heated storage tank
- Thermostatic mixing valve(s)
- Liquid-filled thermostatic motor
- Positive hot-water shutoff
- Integral cold-water bypass
- Temperature-stabilizing accumulator (S9300)
- Integral heat trap
- UL-listed storage tank
- Electric heating element
- NEMA-rated enclosure options
- Designed for remote or cold-water-only installations
- ANSI/ISEA Z358.1 compliant
| Model | Description |
|---|---|
| S9200 | 40 Gallon Tepid Tank System Only – NO FIXTURE |
| Model | Description |
|---|---|
| S9200–S2530-NP-NFT-AB/N | Tepid System with Standard Tank Mounted Eye/Face Wash, No Filter, ABS Bowl |
| S9200–S2535-NP-NFT-AB/N | Tepid System with Barrier Free Tank Mounted Eye/Face Wash, No Filter, AB |
| Model | Description |
|---|---|
| S9300-N1 | 118 Gallon Tepid Tank System Only – NO FIXTURE. NEMA 1 Standard Element |
| S9300-N4 | 118 Gallon Tepid Tank System Only – NO FIXTURE. NEMA 4 Water/Weather Proof Element |
| S9300-N7 | 118 Gallon Tepid Tank System Only – NO FIXTURE. NEMA 7 Explosion Proof Element |
| Model | Description |
|---|---|
| S9300–S3030-GA-NA-NA/AB | Tepid System with Standard Wall Mounted Shower System Standard, Galvanized Pipe, ABS Shower Head |
| S9300–S5510-GA-NFT-AB/AB | Tepid System with Floor Mounted Combination Shower System Standard, Galvanized Pipe, No Filter, ABS Bowl, ABS Shower Head |
Documents

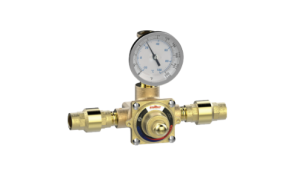

Emergency Mixing valves & Cabinets
Description
Stingray Emergency Mixing Valves & Cabinets are engineered to provide safe, reliable tepid water delivery for emergency eyewash, facewash, and drench shower fixtures. These systems use thermostatic technology to maintain consistent outlet temperatures, compensate for fluctuations in supply conditions, and ensure water remains within ANSI-compliant ranges. Cabinets provide a clean, protected installation for either the valve itself or a complete emergency fixture, keeping equipment tamper-resistant, accessible, and ready for immediate activation.
Features
- Thermostatic temperature control
- Integral cold-water bypass
- Positive hot-water shutoff
- Liquid-filled thermostatic motor
- Tamper-resistant temperature adjustment
- High-flow and low-flow valve options
- Easy maintenance access
- Cabinets in recessed, exposed, and semi-recessed styles
- Stainless steel construction
- ANSI/ISEA Z358.1 compliant
- Cabinet units available with or without mixing valve
- Access panels for servicing
| Model | Description |
|---|---|
| SV107RB | 7 GPM Emergency Mixing Valve with Rough Bronze Finish |
| SV107CP | 7 GPM Emergency Mixing Valve with Chrome Plated Finish |
| Option | Description |
|---|---|
| –SSR | Stainless Steel Recessed Cabinet (SSR) |
| –SSE | Stainless Steel Exposed Cabinet (SSE) |
| –SSSR | Stainless Steel Semi-Recessed Cabinet (SSSR) |
| –CSR | Carbon Steel Recessed Cabinet (CSR) |
| –CSE | Carbon Steel Exposed Cabinet (CSE) |
| –CSSR | Carbon Steel Semi-Recessed Cabinet (CSSR) |
| Model | Description |
|---|---|
| SV125RB | 25 GPM Emergency Mixing Valve with Rough Bronze Finish |
| SV125CP | 25 GPM Emergency Mixing Valve with Chrome Plated Finish |
| Option | Description |
|---|---|
| –SSR | Stainless Steel Recessed Cabinet (SSR) |
| –SSE | Stainless Steel Exposed Cabinet (SSE) |
| –SSSR | Stainless Steel Semi-Recessed Cabinet (SSSR) |
| –CSR | Carbon Steel Recessed Cabinet (CSR) |
| –CSE | Carbon Steel Exposed Cabinet (CSE) |
| –CSSR | Carbon Steel Semi-Recessed Cabinet (CSSR) |
| Model | Description |
|---|---|
| SV160RB | 60 GPM Emergency Mixing Valve with Rough Bronze Finish |
| SV160CP | 60 GPM Emergency Mixing Valve with Chrome Plated Finish |
| Option | Description |
|---|---|
| –SSR | Stainless Steel Recessed Cabinet (SSR) |
| –SSE | Stainless Steel Exposed Cabinet (SSE) |
| –SSSR | Stainless Steel Semi-Recessed Cabinet (SSSR) |
| –CSR | Carbon Steel Recessed Cabinet (CSR) |
| –CSE | Carbon Steel Exposed Cabinet (CSE) |
| –CSSR | Carbon Steel Semi-Recessed Cabinet (CSSR) |

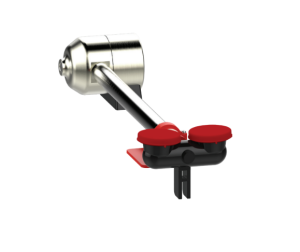

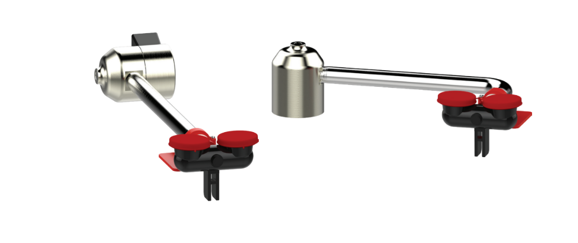

Series S2000 Swing Eye & Eye/Facewash Fixtures
Description
The Series S2000 Swing Eye & Eye/Facewash Fixtures provide reliable, space-efficient emergency eye and eye/facewash protection designed for industrial, commercial, and laboratory environments. Their swing-away design allows the unit to remain out of the workspace until needed, activating instantly with a smooth, intuitive motion. Built for durability and consistent performance, these fixtures deliver a safe, controlled flow of flushing fluid to protect against chemical or particulate exposure.
Features
- Swing-away design
- Stainless steel construction
- Hands-free activation
- Laminar flow control
- Heavy-duty valve design
- Compact, space-saving profile
- Eye-only or eye/facewash configurations
- Meets ANSI standards
Models
- S2240 – Deck Mounted Swing Down Eyewash
- S2540 – Deck Mounted Swing Down Eye/Face Wash
- S2250 – Wall Mounted Swing Down Eyewash
- S2550 – Wall Mounted Swing Down Eye/Face Wash
- S2260 – Deck Mounted Swing Over Eyewash
- S2560 – Deck Mounted Swing Over Eye/Face Wash
Series S3000 Drench Shower
Description
The Series S3000 Drench Shower is Stingray’s standard emergency shower line, designed to deliver immediate, full-flow drench coverage in emergency situations. Built with corrosion-resistant materials and available in floor-mounted, wall-mounted, and ceiling-mounted configurations, the S3000 series provides reliable performance for industrial, commercial, and laboratory environments. Each unit features a high-visibility shower head, a stainless-steel pull-rod actuator, and a stay-open ball valve to ensure continuous, hands-free operation once activated. The design meets ANSI/ISEA Z358.1 requirements and offers a durable, low-maintenance solution for emergency response.
Features
- Corrosion-resistant shower head
- ANSI-compliant spray pattern
- Stainless-steel pull-rod actuator
- Stay-open ball valve for continuous flow
- Available in multiple pipe material options
- ANSI-compliant identification signage included
- Self-draining design on select models
Models
- S3010 – Floor-mounted standard shower
- S3015 – Floor-mounted barrier-free shower
- S3020 – Ceiling-mounted standard shower
- S3025 – Ceiling-mounted barrier-free shower
- S3030 – Wall-mounted standard shower
- S3035 – Wall-mounted barrier-free shower
Documents
Series S5000 Combination Fixture
Description
The Series S5000 Combination Fixture integrates a full-flow emergency drench shower with a quick-activation eye/face wash into one ANSI-compliant safety station. Built with corrosion-resistant components, high-visibility wash heads, and a self-draining eyewash block, this series is designed for durability and hygienic performance in industrial, commercial, and laboratory environments. The unit activates instantly through a pull-rod for the shower and a push handle or paddle for the eyewash, both operating on stay-open ball valves for continuous, hands-free flow. Available in standard and barrier-free configurations and in both floor-mounted and wall-mounted styles, the S5000 Series delivers a flexible, reliable emergency response solution.
Features
- Corrosion-resistant construction
- High-visibility shower and eyewash components
- Uniform, non-forceful ANSI-compliant spray patterns
- Self-draining quick-switch eyewash block
- Dust covers on eyewash nozzles
- Integral spray diverter for balanced flow
- Stainless-steel pull-rod shower actuator
- Stay-open ball valves for continuous flow
- Multiple piping material options
- Includes ANSI-compliant signage
Models
- S5510 – Floor-mounted standard combination fixture
- S5515 – Floor-mounted barrier-free combination fixture
- S5530 – Wall-mounted standard combination fixture
- S5535 – Wall-mounted barrier-free combination fixture
Documents
Accessories
| Part Number | Description |
| -P | PVC P-Trap For Wall Mounted Eye/Face Wash Systems |
| -PC | Chrome P-Trap For Wall Mounted Eye/Face Wash Systems |
| 8881000 | Foot Pedal For Eye or Eye/Face Wash |
| 8780055 | Stainless Steel Bowl Cover |
| 8780056 | ABS Bowl Cover |
| 8781057 | Filtered Quick Switch Eye/Face Wash Block – Flow GREATER Than 3 GPM |
| 8781052 | Non-Filtered Quick Switch Eye/Face Wash Block – Flow GREATER Than 3 GPM |
| 889100 | Dust Covers – EACH |
| 887901 | Black Epoxy Wall Plate |
| 8780062 | ABS Bowl With Drain Tube |
| 8780052 | Standard Stainless Steel Bowl Assembly |
| 8780053 | Barrier Free Stainless Steel Bowl Assembly |
| 886603 | ABS Shower Head |
| 886627 | Stainless Steel Shower Head |
| 118760 | Escutcheon Plate For Stainless Steel Shower Head |
| 888900 | Standard Pull Handle For Shower |
| 889000 | Barrier Free Pull Handle For Shower |
| 865000 | SP/DT Audio & Visual Alarm (ACC100) |
| 865001 | DP/DT Audio & Visual Alarm for Building Integration (ACC200) |
| 894000 | Amber Strobe Light For ACC100/ACC200 |
| 8490859 | TIV107 Cartridge |
| 833426 | TIV125 Cartridge |
| 887906 | Stainless Steel Wall Plate For TIV125 |
| ACC420 | Dual Spray Head Drench Hose |
| 806000 | Wall Bracket For Drench Hose (-WB) |
| -FB | Bracket To Attach Drench Hose To Fixture (-FB) |
| -12R | 12’ Foot Recoil Hose (-12R) |
| 8899050 | 8’ Foot Standard Hose (-8) |
| 844500 | Brass Backflow Preventer |
| 822000 | Brass In-Line Vacuum Breaker – Atmospheric Type |
| 8899001 | Hose Bib Assembly |
| 8899100 | Test Kit |
