GS5-45HPC-D

Description

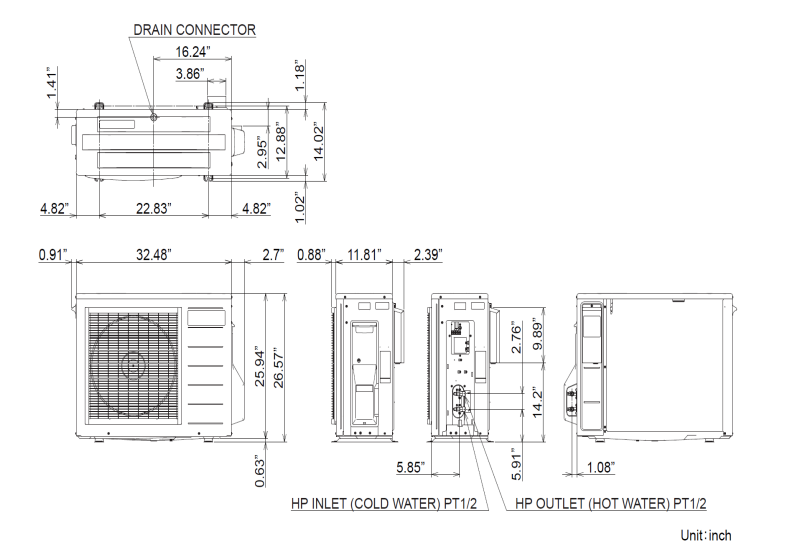

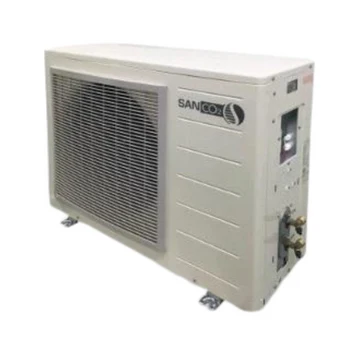

The GS5-45HPC-D is a 4.5 kW outdoor heat pump unit equipped with a drain pan heater for cold climate operation.

Features

• 4.5 kW heating capacity
• Integrated drain pan heater for freeze protection
• Designed for reliable operation in cold climates
• Energy-efficient heat pump technology
• Durable outdoor-rated construction
• Quiet operation
• Compatible with standard control systems
• Compact design for easy installation

Documents

• Submittal

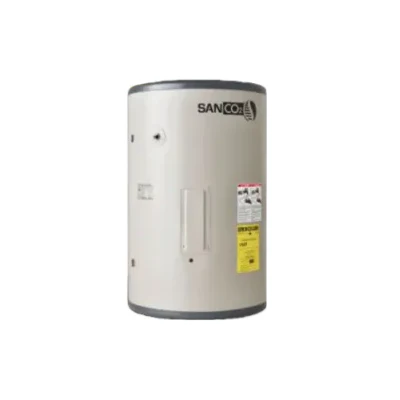

ECO-43SSAQB

Description

Residential 43-gallon stainless steel storage tank for durable, long-lasting hot water storage.

Features

• 43-gallon capacity
• Stainless steel construction for corrosion resistance
• Designed for residential hot water applications
• High-quality insulation for heat retention
• Compact and durable design
• Compatible with a variety of water heating systems

Documents

• Submittal

ECO-83SSAQB

Description

Residential 83-gallon stainless steel storage tank designed for efficient and reliable hot water storage.

Features

• 83-gallon capacity
• Corrosion-resistant stainless steel construction
• Ideal for residential hot water systems
• High-efficiency insulation for superior heat retention
• Durable, long-lasting design
• Compatible with multiple water heating configurations

Documents

• Submittal

ECO-119GLBB

Description

Residential or commercial 119-gallon glass-lined storage tank designed for large-capacity hot water applications.

Features

• 119-gallon capacity
• Durable glass-lined steel construction
• Suitable for residential or light commercial use
• Excellent corrosion resistance
• High-efficiency insulation for heat retention
• Long service life and low maintenance

Documents

• Submittal

ECO-119GLASME

Description

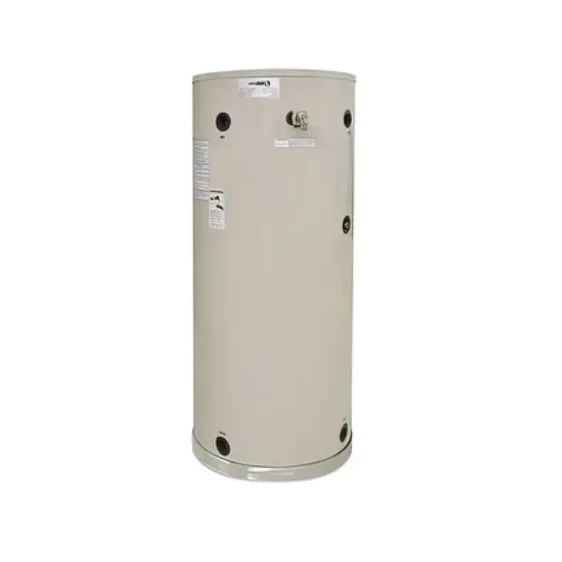

Commercial-grade 119-gallon glass-lined storage tank with ASME certification for high-pressure applications.

Features

• 119-gallon capacity
• ASME certified for commercial use
• Heavy-duty glass-lined steel construction
• Superior corrosion protection
• High-efficiency insulation
• Designed for durability and long service life

Documents

• Submittal

ECO-200GLBK

Description

Commercial 200-gallon glass-lined storage tank with ASME certification for high-capacity, high-pressure applications.

Features

• 200-gallon capacity
• ASME certified for commercial installations
• Durable glass-lined steel construction
• Corrosion-resistant interior
• Heavy-duty insulation for heat retention
• Built for reliability and long service life

Documents

• Submittal

ECO-285GLNST

Description

Commercial 285-gallon glass-lined storage tank with ASME certification, designed for large-capacity hot water storage applications.

Features

• 285-gallon capacity
• ASME certified for commercial use
• Glass-lined steel construction for corrosion resistance
• Available in top (NST) or side (NSD) connection configurations
• Heavy-duty insulation for maximum heat retention
• Built for durability and long service life

Documents

• Submittal

ECO-360GLNST

Description

Commercial 360-gallon glass-lined storage tank with ASME certification, engineered for high-demand hot water applications.

Features

• 360-gallon storage capacity
• ASME certified for commercial installations
• Glass-lined steel interior for superior corrosion protection
• Available in top (NST) or side (NSD) connection styles
• Thick insulation for optimal heat retention
• Rugged construction for long-lasting performance

Documents

• Submittal

ECO-455GLNST

Description

Commercial 455-gallon glass-lined storage tank with ASME certification, designed for large-scale hot water storage and commercial use.

Features

• 455-gallon storage capacity
• ASME certified for commercial applications
• Durable glass-lined interior for corrosion resistance
• Available in top (NST) or side (NSD) connection options
• Heavy-duty steel construction for long service life
• Insulated for efficient heat retention

Documents

• Submittal

ECO-505GLNST

Description

Commercial 505-gallon glass-lined storage tank with ASME certification, ideal for large-capacity hot water storage in commercial systems.

Features

• 505-gallon storage capacity
• ASME certified for commercial use
• Glass-lined interior for superior corrosion protection
• Available with top (NST) or side (NSD) connections
• Heavy-duty steel construction for durability
• Insulated design for maximum heat retention

Documents

• Submittal

ECO-285GLNSD

Description

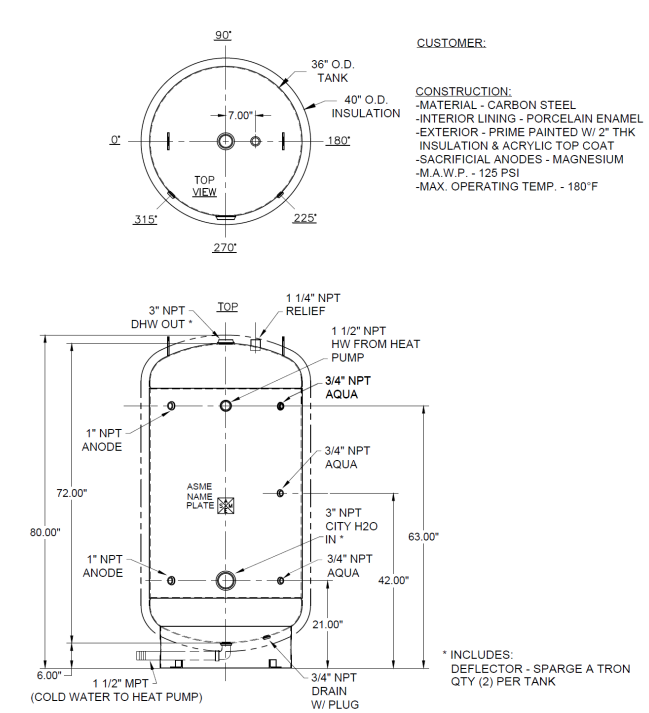

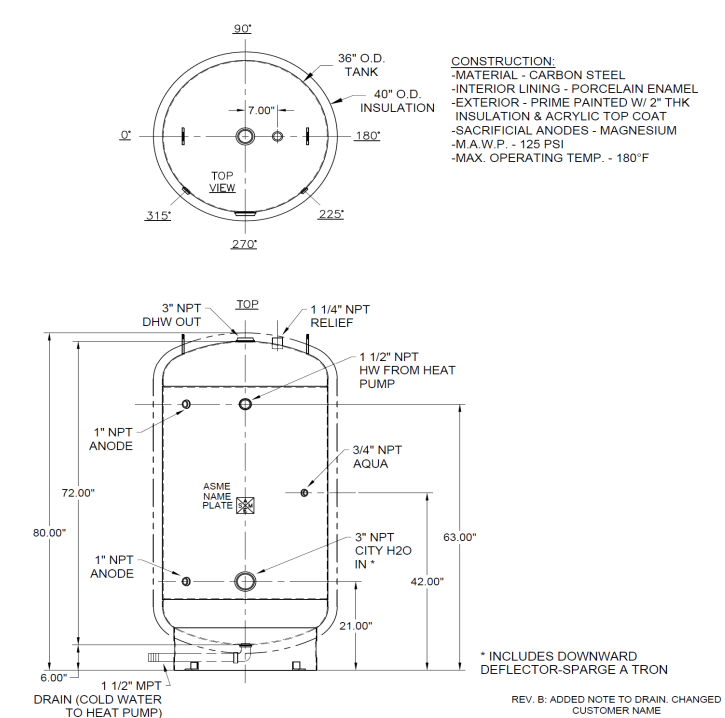

The ECO-285GLNSD is a 285-gallon ASME-certified storage tank constructed from carbon steel with a baked-on Ultonium™ porcelain enamel lining for superior corrosion resistance. It features 2¼”–2½” of spray-on foam insulation (R16) with an acrylic topcoat for indoor or outdoor installation, meeting California Title 24 efficiency standards. Designed for use with GS4 and GS5 heat pumps, the tank includes multiple temperature sensor wells, three magnesium anodes, and a 125 psig ASME pressure relief valve. With durable construction and efficient heat retention, it ensures reliable hot water storage and long service life.

Features

• ASME Certified for commercial applications
• 285-gallon nominal (318-gallon actual) capacity
• Carbon steel construction with Ultonium™ porcelain enamel lining for superior corrosion protection
• 2¼”–2½” spray-on foam insulation (R16) with durable acrylic topcoat — suitable for indoor or outdoor installation
• Complies with California Title 24 energy efficiency standards
• Multiple temperature sensor wells (top, middle, bottom) for accurate heat pump control
• Compatible with GS4 and GS5 heat pumps
• Three magnesium anodes for extended tank life
• ASME pressure relief valve rated at 125 psig
• High recovery rate: 20.5 GPH @ 90°F rise per 4.5 kW (15,400 Btu/h) heat pump
• Large connection sizes (3″ NPT tank fittings, 1½” NPT heat pump connections) for optimal flow
• Rugged, maintenance-friendly design for long-term reliability and performance

Documents

• Submittal

ECO-360GLNSD

Description

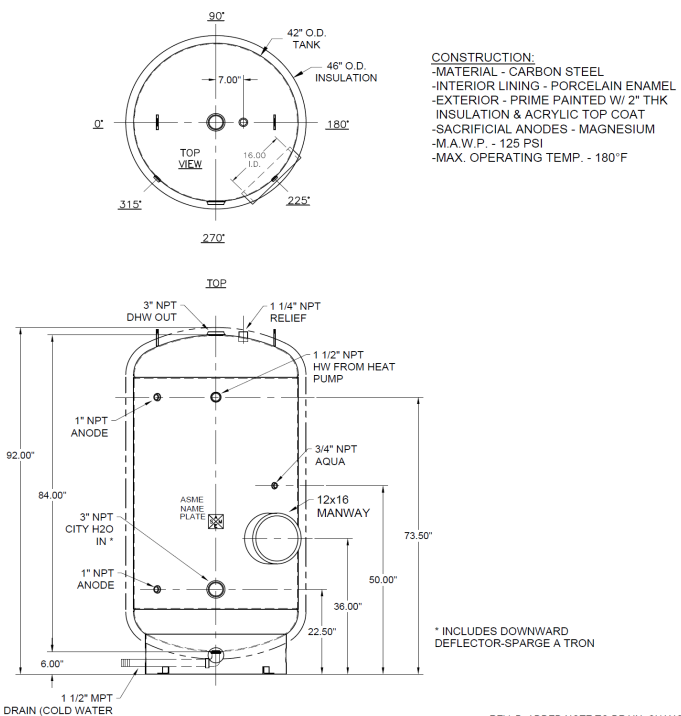

The ECO-360GLNSD is a 360-gallon ASME-certified storage tank built from carbon steel and coated with a baked-on Ultonium™ porcelain enamel lining for long-lasting corrosion protection. It features 2¼”–2½” of R16 spray-on foam insulation with an acrylic topcoat suitable for both indoor and outdoor installation, meeting California Title 24 standards. Designed for use with GS4 and GS5 heat pumps, this tank includes multiple sensor wells, three magnesium anodes, and an ASME-rated 125 psig pressure relief valve. Its durable construction and high-efficiency insulation deliver reliable hot water storage performance for commercial applications.

Features

• ASME certified for commercial use
• 360-gallon nominal (397-gallon actual) capacity
• Carbon steel construction with Ultonium™ porcelain enamel lining
• 2¼”–2½” spray-on foam insulation (R16) with weather-resistant acrylic topcoat
• Complies with California Title 24 efficiency requirements
• Compatible with GS4 and GS5 heat pumps
• Temperature sensor wells at top, middle, and bottom for precise monitoring
• Three magnesium anodes for corrosion resistance
• ASME pressure relief valve rated at 125 psig
• Large 3″ NPT tank connections and 1½” NPT heat pump connections for high flow
• High recovery rate: 20.5 GPH @ 90°F rise per 4.5 kW (15,400 Btu/h) heat pump
• Empty weight: 912 lbs | Shipping weight: 1,020 lbs
• 5-year tank warranty

Documents

• Submittal

ECO-455GLNSD

Description

The ECO-455GLNSD is a 455-gallon ASME-certified carbon steel storage tank lined with durable Ultonium™ porcelain enamel for exceptional corrosion resistance. It features 2¼”–2½” of R16 spray-on foam insulation with a weather-resistant acrylic topcoat, suitable for both indoor and outdoor installation, and meets California Title 24 efficiency standards. Designed for use with GS4 and GS5 heat pumps, this tank provides reliable hot water storage with multiple temperature sensor wells, three magnesium anodes, and a 125 psig ASME pressure relief valve, ensuring long-lasting performance and efficiency in commercial applications.

Features

• ASME certified for commercial use
• 455-gallon nominal (504-gallon actual) capacity
• Carbon steel construction with Ultonium™ porcelain enamel lining for superior corrosion protection
• 2¼”–2½” spray-on foam insulation (R16) with acrylic topcoat for indoor/outdoor use
• Complies with California Title 24 insulation requirements
• Designed for GS4 and GS5 heat pumps
• Temperature sensor wells at top, middle, and bottom for field-installed thermistors
• Three magnesium anodes for extended tank life
• ASME-rated 125 psig pressure relief valve included
• 3″ NPT female tank connections and 1½” NPT heat pump connections
• High recovery rate: 20.5 GPH @ 90°F rise per 4.5 kW (15,400 Btu/h) heat pump
• Empty weight: 1,350 lbs | Shipping weight: 1,460 lbs
• 5-year tank warranty

Documents

• Submittal

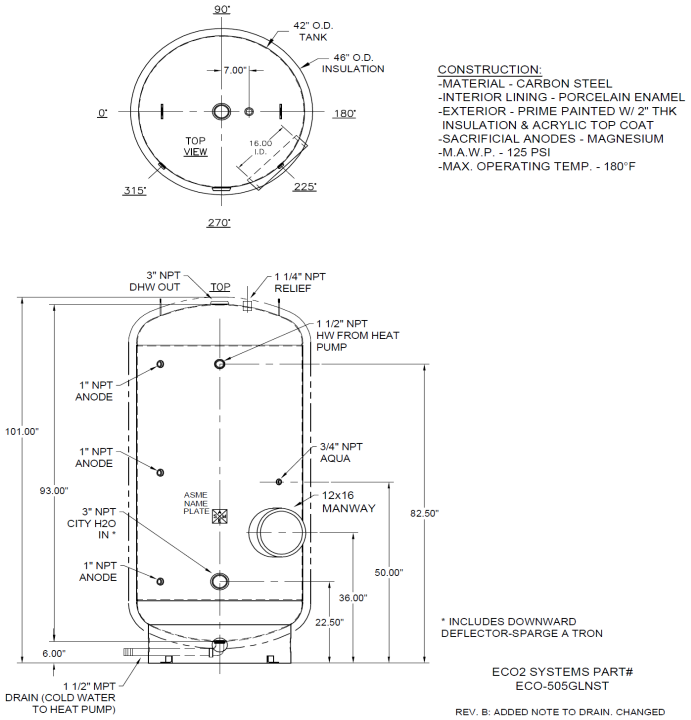

ECO-505GLNSD

Description

The ECO-505GLNSD is a 505-gallon ASME-certified storage tank designed for commercial applications and use with GS4 and GS5 heat pumps. Constructed from carbon steel with a baked-on Ultonium™ porcelain enamel lining, it provides exceptional corrosion protection and long service life. The tank is insulated with 2¼”–2½” of spray-on foam insulation (R16) and sealed with an acrylic topcoat suitable for both indoor and outdoor installations, fully compliant with California Title 24 standards. Featuring multiple temperature sensor wells, three magnesium anodes, and an ASME 125 psig pressure relief valve, this model ensures efficient hot water storage and durable performance in demanding commercial settings.

Features

• ASME certified for commercial water heating applications
• 505-gallon nominal (558-gallon actual) capacity
• Carbon steel tank with Ultonium™ porcelain enamel lining for corrosion resistance
• 2¼”–2½” spray-on foam insulation (R16) with acrylic topcoat for indoor/outdoor use
• Complies with California Title 24 energy efficiency requirements
• Compatible with GS4 and GS5 heat pumps
• Temperature sensor wells at top, middle, and bottom for field-installed thermistors
• Three magnesium anodes for extended tank life
• ASME-rated pressure relief valve set at 125 psig
• 3″ NPT female tank connections and 1½” NPT heat pump connections
• High recovery rate: 20.5 GPH @ 90°F rise per 4.5 kW (15,400 Btu/h) heat pump
• Empty weight: 1,435 lbs | Shipping weight: 1,545 lbs
• 5-year tank warranty

Documents

• Submittal

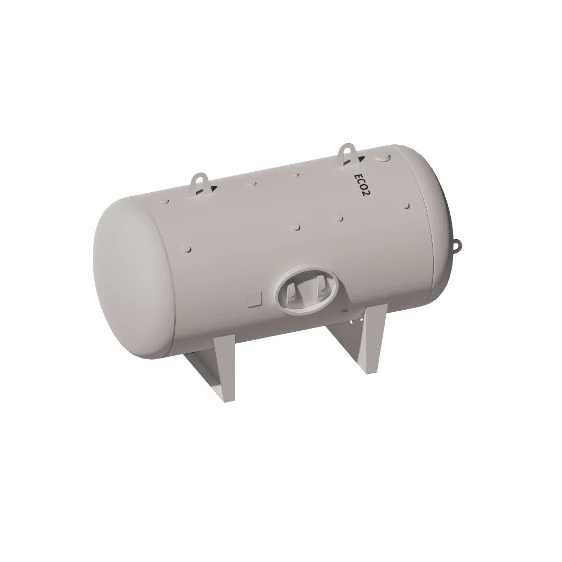

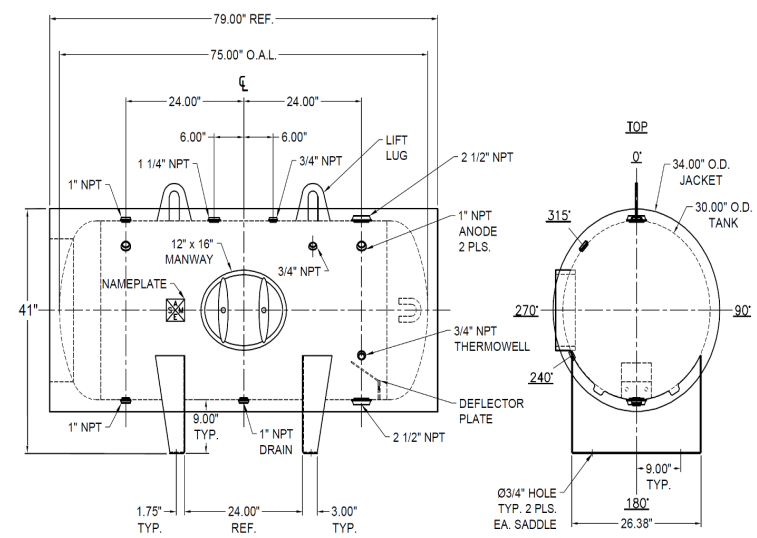

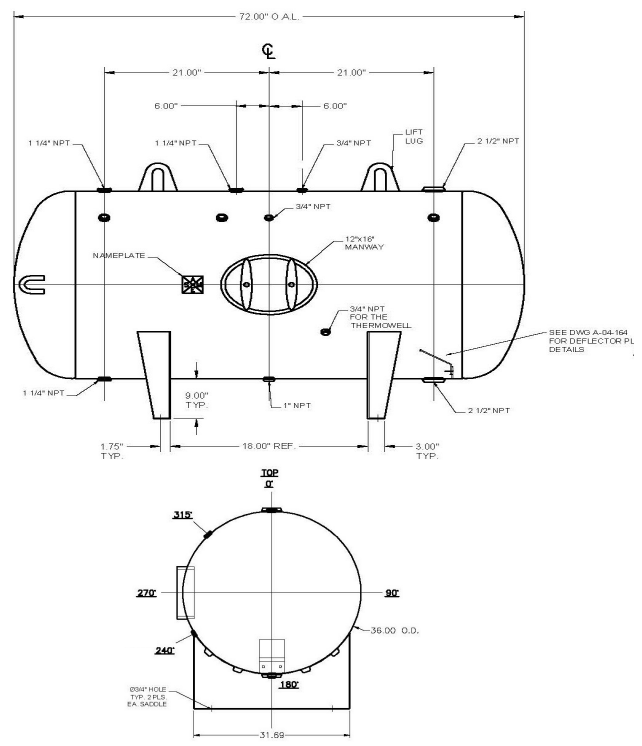

ECO-HZ210JKNST

Description

Commercial 210-gallon horizontal glass-lined storage tank with ASME certification, built for reliable hot water storage in commercial systems.

Features

• 210-gallon horizontal storage capacity
• ASME certified for commercial applications
• Glass-lined interior for corrosion protection
• Heavy-duty steel construction for durability
• Insulated for optimal heat retention
• Space-saving horizontal design

Documents

• Submittal

ECO-HZ285GLNST

Description

Commercial 285-gallon horizontal glass-lined storage tank with ASME certification, designed for durable and efficient hot water storage in commercial systems.

Features

• 285-gallon horizontal capacity
• ASME certified for commercial use
• Glass-lined interior for corrosion resistance
• Heavy-duty steel construction
• Insulated for superior heat retention
• Space-efficient horizontal configuration

Documents

• Submittal

ECO-HZ360GLNST

Description

Commercial 360-gallon horizontal glass-lined storage tank with ASME certification, engineered for reliable hot water storage in commercial applications.

Features

• 360-gallon horizontal capacity
• ASME certified for commercial installations
• Glass-lined interior for corrosion protection
• Heavy-duty steel construction
• Insulated for optimal heat retention
• Space-saving horizontal design

Documents

• Submittal

ECO-HZ455GLNST

Description

Commercial 455-gallon horizontal glass-lined storage tank with ASME certification, designed for dependable hot water storage in commercial systems.

Features

• 455-gallon horizontal capacity
• ASME certified for commercial use
• Durable glass-lined interior for corrosion resistance
• Heavy-duty steel construction
• Insulated for maximum heat retention
• Space-efficient horizontal configuration

Documents

• Submittal

ECO-HZ505GLNST

Description

Commercial 505-gallon horizontal glass-lined storage tank with ASME certification, built for reliable hot water storage in large-scale applications.

Features

• 505-gallon horizontal capacity
• ASME certified for commercial use
• Glass-lined interior for corrosion protection
• Heavy-duty steel construction
• Factory-insulated for heat retention
• Horizontal design for flexible installation

Documents

• Submittal

ECO-80SW13

Description

The ECO-80SW13 is an 80-gallon ASME-rated swing tank with an integrated 13.5 kW electric heating element, designed for use with GS5-45HPC and GS5-45HPC-D heat pumps. Built from heavy-gauge mild steel and lined with a cobalt-enriched porcelain glass coating, this tank offers superior corrosion protection and durability. It features 3″ of high-density closed-cell foam insulation that meets ASHRAE 90.1b standards for energy efficiency, and includes digital temperature controls, magnesium anodes, and a 150 psig pressure relief valve. Engineered for reliable performance and precise temperature management, the ECO-80SW13 provides efficient hot water support in commercial systems.

Features

• ASME-rated 80-gallon tank designed for GS5-45HPC & -D heat pumps
• Constructed from thick mild steel with cobalt-enriched porcelain glass lining
• 13.5 kW low-watt-density Incoloy heating element for durability and corrosion resistance
• 3″ closed-cell foam insulation meets ASHRAE 90.1b energy efficiency standards
• Powder-coated steel outer jacket for added protection
• Dual magnesium anodes for extended tank life
• Digital temperature control system with immersion thermostat (factory preset to 120°F / 49°C)
• Multiple power configurations:
  • 208V-1Ph: 64.9A / 90A breaker
  • 240V-1Ph: 56.2A / 80A breaker
  • 208V-3Ph: 37.5A / 50A breaker
  • 240V-3Ph: 32.5A / 45A breaker
• 150 psig ASME-approved pressure relief valve
• 1½” NPT inlet and outlet for recirculation and hot water connections
• Installed weight: 350 lbs | Shipping weight: 395 lbs
• UL & ULC listed construction
• 5-year tank warranty

Documents

• Submittal

ECO-119SW13

Description

The ECO-119SW13 is a 119-gallon ASME-rated swing tank equipped with a 13.5 kW electric heating element, designed for use with GS5-45HPC and GS5-45HPC-D heat pumps. Constructed from thick mild steel with a cobalt-enriched porcelain glass lining, the tank offers excellent corrosion resistance and long service life. It includes 3″ of high-density closed-cell foam insulation that meets ASHRAE 90.1b standards for energy efficiency and a powder-coated steel outer jacket for durability. With its digital immersion thermostat, multiple power configurations, and 150 psig ASME-approved relief valve, the ECO-119SW13 delivers reliable and efficient hot water performance for demanding commercial systems.

Features

• ASME-rated 119-gallon swing tank for commercial hot water systems
• Constructed from thick mild steel with cobalt-enriched porcelain glass lining for corrosion resistance
• 13.5 kW low-watt-density Incoloy heating element for high-temperature durability and hard water protection
• 3″ closed-cell foam insulation meeting ASHRAE 90.1b standards for minimal heat loss (≤4 W/ft²)
• Powder-coated steel outer jacket for added environmental protection
• Digital control system with immersion thermostat (factory preset to 120°F / 49°C)
• Three magnesium anodes for enhanced corrosion protection
• Multiple power configurations:
  • 208V-1Ph: 64.9A / 90A breaker
  • 240V-1Ph: 56.2A / 80A breaker
  • 208V-3Ph: 37.5A / 50A breaker
  • 240V-3Ph: 32.5A / 45A breaker
• 1½” NPT recirculation and hot water connections
• 150 psig ASME-approved pressure relief valve included
• Installed weight: 550 lbs | Shipping weight: 742 lbs
• UL & ULC listed construction
• 5-year tank warranty

Documents

• Submittal

ECO-200SW18

Description

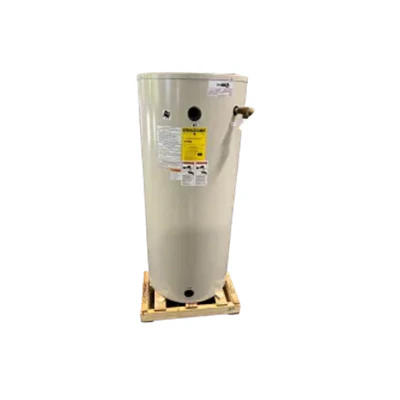

The ECO-200SW18 is a 200-gallon ASME-certified swing tank featuring an 18 kW low-watt-density Incoloy heating element for dependable commercial hot water performance. Designed for use with GS5-45HPC and GS5-45HPC-D heat pumps, the tank is constructed from carbon steel with a durable Ultonium™ glass lining fired to 1600°F for superior corrosion resistance. It includes high-density closed-cell foam insulation that meets ASHRAE 90.1b standards for energy efficiency and a digital immersion thermostat for precise temperature control. With ASME and ETL certification, 150 psig pressure relief protection, and multiple voltage configurations, the ECO-200SW18 delivers exceptional durability, safety, and performance for commercial and industrial hot water systems.

Features

• ASME-rated 200-gallon swing tank for GS5 heat pump systems
• Carbon steel construction with Ultonium™ glass lining fired to 1600°F for corrosion protection
• 18 kW low-watt-density Incoloy heating element designed for high-temperature, hard water, and thermal shock resistance
• High-density closed-cell foam insulation meets ASHRAE 90.1b standards (≤4 W/ft² energy loss)
• 1½” NPT recirculation and hot water connections
• 3 magnesium anodes for extended tank life
• Immersion thermostat and magnetic contactors for reliable temperature control
• 120V control circuit with built-in transformer
• Internal fusing and 200,000 A interrupting capacity cartridge fuses
• Building Management System (BMS) interface contacts for remote monitoring and control
• 150 psig ASME-approved pressure relief valve included
• Amperage Draw Options:
  • 208V-1Ph: 87.0A | 240V-1Ph: 75.0A
  • 208V-3Ph: 50.0A | 240V-3Ph: 44.0A
• Approvals: ASME, ETL & ETLc
• Warranty: 5 years

Documents

• Submittal

ECO-200SW30

Description

The ECO-200SW30 is a 200-gallon ASME-certified swing tank equipped with dual 15 kW low-watt-density Incoloy heating elements (30 kW total output) for powerful and reliable commercial hot water production. Built from carbon steel with a durable Ultonium™ glass lining fired to 1600°F, this tank provides exceptional corrosion resistance and longevity. Designed for compatibility with GS5-45HPC and GS5-45HPC-D heat pumps, the unit features high-density closed-cell foam insulation meeting ASHRAE 90.1b efficiency standards, an immersion thermostat, and a magnetic contactor control system for precise and efficient operation. With ASME and ETL certifications, a 150 psig pressure relief valve, and BMS interface contacts for remote monitoring, the ECO-200SW30 delivers high performance, durability, and energy efficiency for commercial hot water systems.

Features

• ASME-rated 200-gallon swing tank for GS5 series heat pump systems
• Carbon steel construction with Ultonium™ glass lining fired to 1600°F for superior corrosion protection
• 30 kW total output from two low-watt-density Incoloy heating elements
• Elements resist thermal shock, hard water scaling, and corrosion
• High-density closed-cell foam insulation meets ASHRAE 90.1b standard (≤4 W/ft² energy loss)
• 1½” NPT recirculation and hot water connections
• 3 magnesium anodes for extended tank life
• Magnetic contactors and immersion thermostat with 120V control circuit and built-in transformer
• Thermostatic control in 54 kW (max) increments for efficient heating
• Internal electrical fusing with 200,000 A interrupting capacity cartridge fuses
• Building Management System (BMS) interface contacts for remote control and monitoring
• 150 psig ASME-approved pressure relief valve included
• Amperage Draw Options:
  • 208V-1Ph: 144.0A | 240V-1Ph: 125.0A
  • 208V-3Ph: 83.0A | 240V-3Ph: 72.0A
• Certifications: ASME, ETL & ETLc
• Warranty: 5 years

Documents

• Submittal

91101-45190

Description

Tank thermistor sensor designed to monitor and regulate water temperature within the storage tank.

Features

• Accurate temperature sensing
• Compatible with designated tank models
• Durable, heat-resistant construction
• Easy installation and replacement
• Ensures optimal system performance

Documents

• Submittal

FG2-6L

Description

6-foot self-regulating heat tape designed to prevent pipes from freezing in cold environments.

Features

• Self-regulating heating element
• 6-foot length for versatile use
• Suitable for metal and plastic pipes
• Energy-efficient temperature control
• Easy to install and maintain

Documents

• Submittal

ECO-FPVKT-SMTW

Description

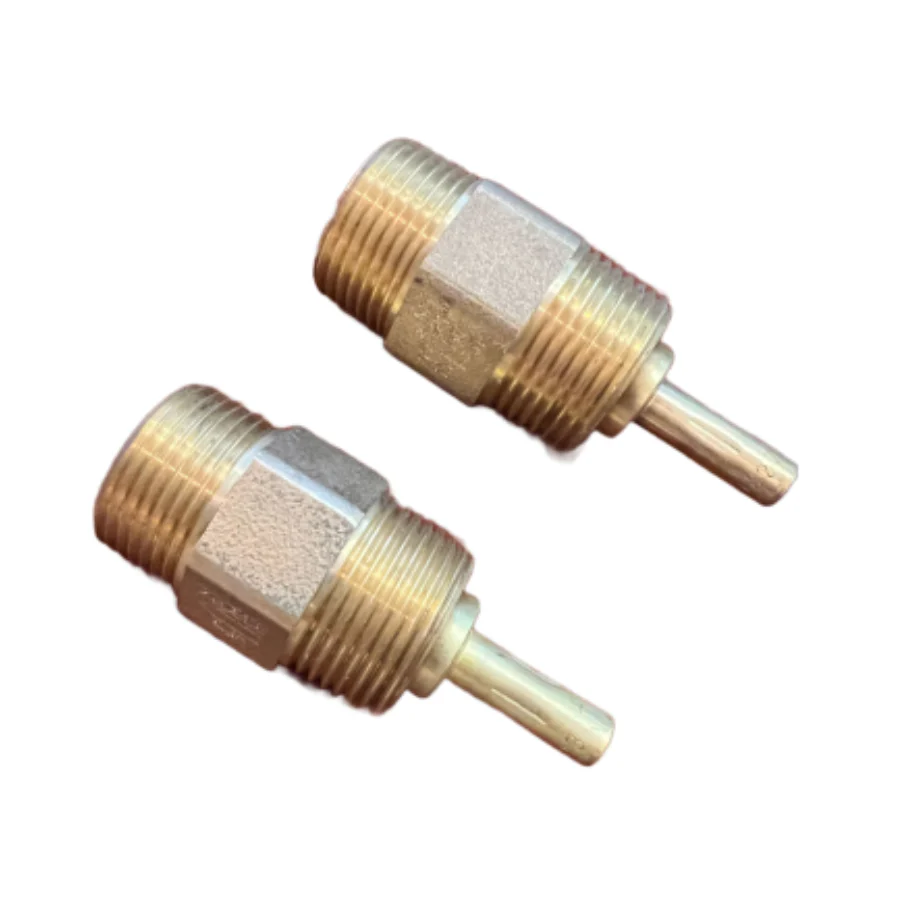

The ECO-FPVKT-SMTW Freeze Protection Valve Kit includes two self-actuating valves designed to protect heat pump systems from freeze damage during power outages. Installed on the cold water inlet and hot water outlet lines, these valves automatically open at 35°F and close at 40°F, allowing water to drain and prevent freezing in low-temperature conditions. This simple, reliable kit ensures added system protection and peace of mind in cold climates.

Features

• Part #: ECO-FPVKT-SMTW
• Includes: 2 valves (one for cold inlet, one for hot outlet)
• Automatic operation: Opens at 35°F, closes at 40°F
• Prevents freeze damage during power loss or low ambient conditions
• No power required — purely mechanical operation
• Compact and easy to install on most heat pump water systems
• Durable construction for outdoor or exposed installations
• Ideal for cold climate applications

Documents

• Submittal

ECO-MTBRK-B2L

Description

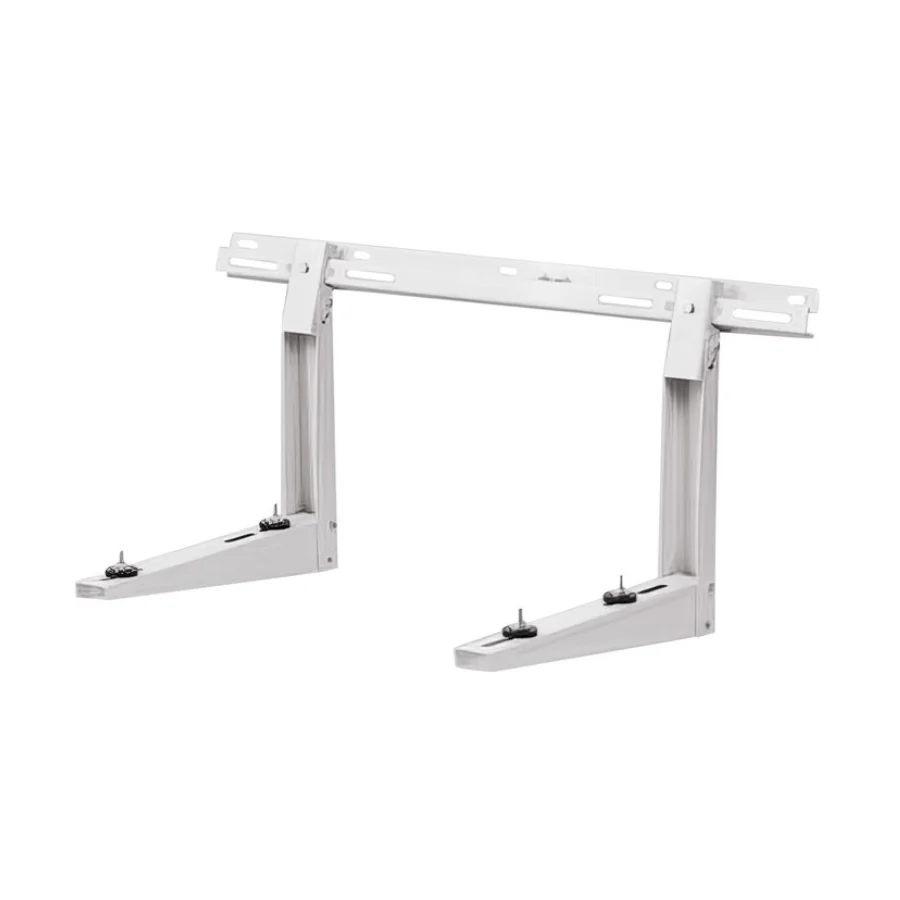

The ECO-MTBRK-B2L Wall Bracket Kit provides a secure and durable mounting solution for ECO2 heat pump units. Designed for strength, stability, and easy installation, this bracket supports wall-mounted applications, keeping the unit elevated and protected from ground-level debris, snow, and water exposure. Ideal for both residential and light commercial installations.

Features

• Part #: ECO-MTBRK-B2L
• Application: Wall mounting for ECO2 heat pump units
• Heavy-duty steel construction for maximum strength and durability
• Corrosion-resistant coating for outdoor use
• Elevates unit to protect from snow, debris, and flooding
• Vibration-dampening design for quiet operation
• Easy installation with included mounting hardware
• Suitable for residential and commercial environments

Documents

• Submittal

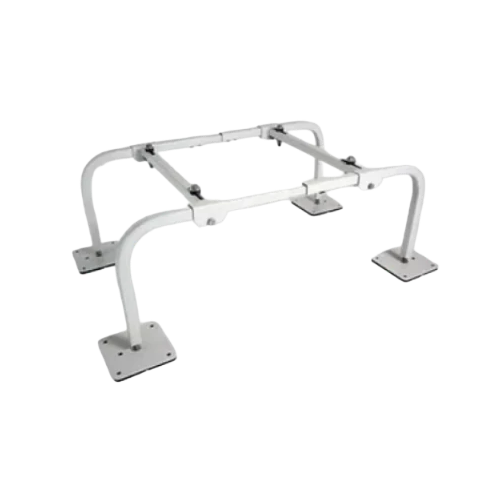

ECO-HPSTD-12

Description

The ECO-HPSTD-12 Heat Pump Stand is a durable, 12-inch elevated mounting platform designed to support ECO2 heat pump units. Built for stability and longevity, this stand keeps equipment safely above ground level to prevent damage from snow, ice, debris, or water accumulation, ensuring reliable year-round performance in any environment.

Features

• Part #: ECO-HPSTD-12
• Height: 12 inches
• Application: Ground-mounted support for ECO2 heat pumps
• Heavy-duty steel construction for strength and durability
• Corrosion-resistant finish for outdoor use
• Provides clearance from snow, standing water, and debris
• Pre-drilled mounting holes for quick installation
• Stable base design for reduced vibration and secure placement
• Ideal for residential and light commercial installations

Documents

• Submittal

ECO-MRCHL-17W

Description

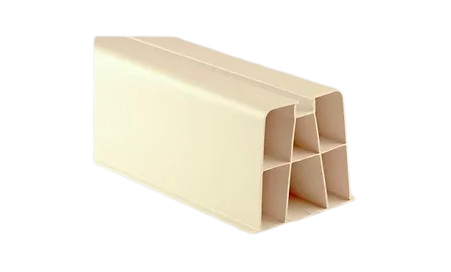

The ECO-MRCHL-17W Heat Pump Mounting Channel provides a sturdy, low-profile mounting base for ECO2 heat pump units. With a 3.75-inch height, this channel elevates the unit slightly off the surface to promote proper drainage, reduce vibration, and prevent corrosion or damage from standing water or debris.

Features

• Part #: ECO-MRCHL-17W
• Height: 3.75 inches
• Application: Base support for ECO2 heat pump units
• Heavy-duty galvanized steel construction for long-lasting durability
• Corrosion-resistant coating for outdoor environments
• Low-profile design for compact, stable installation
• Improves drainage and reduces vibration noise
• Easy to install with pre-drilled holes for secure mounting
• Suitable for residential and commercial applications

Documents

• Submittal

ECO-CMB-BAC

Description

The ECO-CMB-BAC Multi System Controller is a UL-approved, programmable control module designed to manage and coordinate up to 32 GS5-45HPC or GS5-45HPC-D heat pumps. This controller ensures optimized system operation by sequencing multiple units for efficient load management and balanced runtime. The controller includes 12 jumpers for flexible configuration and easy integration into building management systems.

Features

• Part #: ECO-CMB-BAC
• UL Approved for safety and reliability
• Programmable controller for flexible system configuration
• Capable of controlling up to 32 GS5-45HPC or GS5-45HPC-D heat pumps
• Sequences multiple units for load balancing and energy efficiency
• Provides automatic staging and rotation to extend equipment life
• Includes 12 jumpers for field setup and system customization
• Compatible with BACnet® communication protocols for integration with building management systems
• LED indicators for easy status monitoring and diagnostics
• Compact wall-mount design for simplified installation
• Ideal for large commercial or multi-unit heating applications

ECO-CMB-RSTR

Description

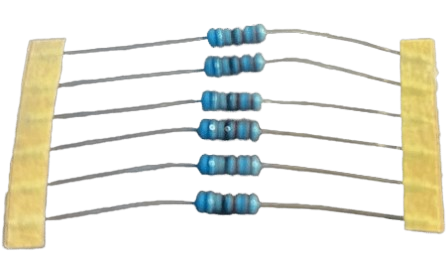

The ECO-CMB-RSTR is a fixed-temperature replacement device designed to simulate an individual tank temperature sensor input for SANCO₂ heat pumps. It ensures proper communication with the controller, allowing the heat pump to start heating based on external control signals. Each kit includes six jumpers, making it ideal for multi-unit or system-wide installations.

Features

• Part #: ECO-CMB-RSTR
• Fixed-temperature sensor replacement for SANCO₂ heat pump systems
• Mimics tank temperature sensor input to enable proper heat pump operation
• Ensures heat pump activation based on controller input
• Includes six (6) jumpers per kit
• Plug-and-play design for quick field installation
• Reliable communication between tank and heat pump
• Compatible with ECO-CMB-BAC multi system controller

ECO-RDR

Description

The ECO-RDR Residential Demand Response Controller is designed to optimize energy usage and efficiency in SANCO₂ heat pump water heating systems. It enables connection to utility demand response programs, allowing remote control or adjustment of system operation during peak demand periods while maintaining reliable hot water availability for the home.

Features

• Part #: ECO-RDR
• Enables utility demand response integration for residential systems
• Designed for use with SANCO₂ heat pump water heaters
• Helps reduce energy costs and grid load during peak periods
• Allows remote control or curtailment of heat pump operation
• Maintains comfort by preserving stored hot water capacity
• Compact, easy-to-install design for new or retrofit applications
• Contributes to energy efficiency compliance and sustainability goals
