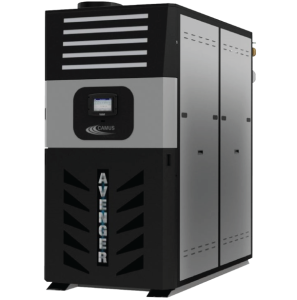

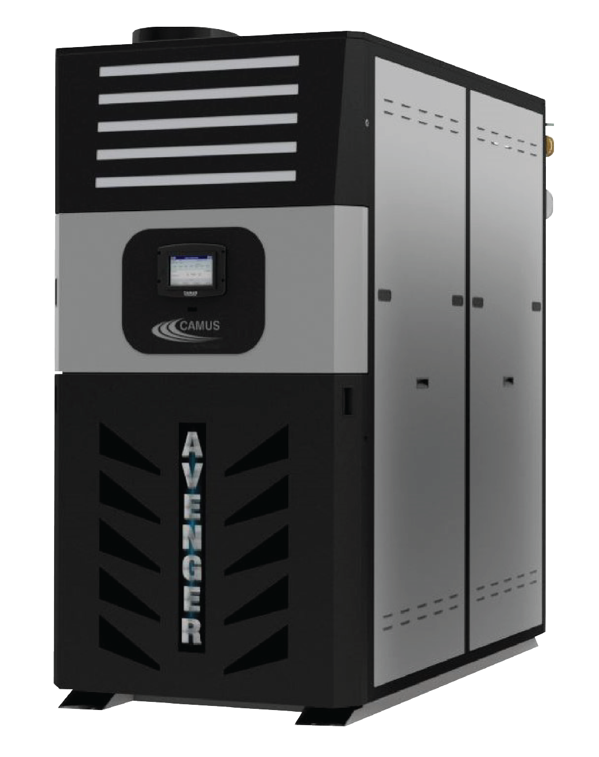

Avenger Series

Description

The Avenger Series is a two-pass counter flow fire tube commercial boiler for hydronic heating applications. It features thermal efficiencies of up to 98% and turndown ratios of up to 40:1.

Features

• Models 1,000 up to 6,000 MBH
• 160 PSI working pressure
• Fully welded construction with stainless steel pressure vessel, tubes, tube sheets and combustion chamber
• Modulating burner with up to 40:1 turn-down
• ASME “H” and “HLW” stamped heat exchanger
• Operating pressure as low as 12 PSI
• Natural or propane gas operation

Controls

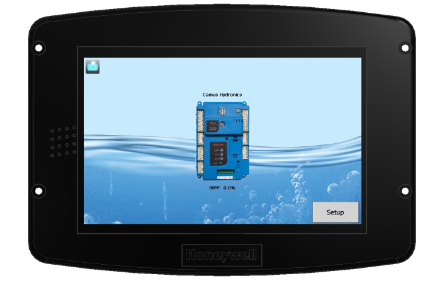

The Avenger Series is powered by an integrated Honeywell SOLA controller with a 7” color touchscreen for easy operation and remote set point/fire rate control via 4-20mA or 0-10Vdc. It supports multi-pump operation and daisy-chain setup for up to 8 boilers, with USB screenshot capture and password-protected service access. Standard Modbus RTU enables full BMS integration for monitoring and control of boiler status, temperatures, pump activation, error codes, and firing rates. For broader connectivity, the Avenger also supports BacnetIP, BacnetMSTP, MetasysN2, and LonWorks via the BTL-certified Fieldserver Protonode, offering Ethernet or RS485 connectivity.

Models

• Avenger Series I
• Avenger Series II

Documents

• Avenger Series I Submittal
• Avenger Series II Submittal

Valiant-FT Series I

Description

The Valiant-FT Series I is a counter flow firetube boiler for hydronic heating applications.  It features thermal efficiencies of up to 97% and turndown ratios of up to 10:1.  This boiler can be floor mounted or wall hung.  Energy star rated for models.

Serviceability in any situation

The Valiant-FT takes into consideration convenience of access to all components, as well as multiple field installation possibilities.  All the components are conveniently placed inside the jacket, making them easily accessible from multiple access points from the body of the unit.  Paired with the small footprint and zero inch clearance to combustibles on either side, the Valiant-FT can be installed seamlessly into any space restrictive job sites while still maintaining an ease of access to the appliance.

Features

• Models range from 80,000 BTU/hr up to 399,000 BTU/hr
• ASME “H” stamped stainless steel heat exchanger
• Fully welded construction with stainless steel pressure vessel combustion chamber, tubes and tubesheets
• 95% DOE AFUE efficiency (models 80-299)
• 97% thermal efficiency (model 399)
• NG or LP operation (field convertible)
• Standard wall-hung configuration (optional kit for floor-mount configuration)
• Inherent O2 trim via air density response
• Zero clearances to combustible materials
• Built-in high limit and low water cut-off with soft manual reset through touchscreen
• Universal vent connection with combustion analyzer test port
• Return water temperatures as low as 40°F
• Factory test-fired and certified

Documents

• Valiant-FT Product Brochure
• Valiant-FT Series I Installation Manual – EBM Control
• Valiant-FT Series I Submittal

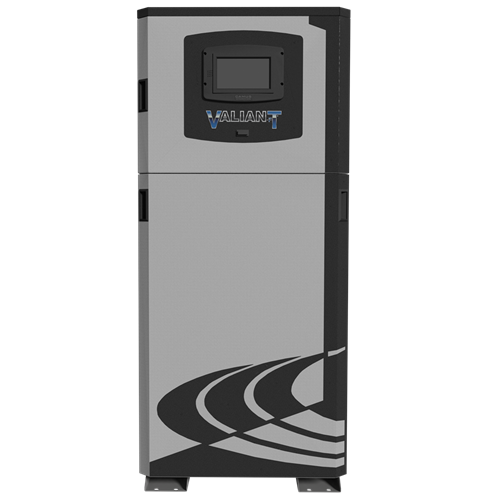

Valiant-FT Series II

Description

The Valiant-FT Series II is a condensing, commercial boiler, designed for use with a hydronic heating system at working pressures up to 160 PSI.

Features

• Capable of up to 99.4% Thermal Efficiency and up to 99.2% Combustion Efficiency.
• Available in a broad capacity range, with inputs from 400 to 850 KBtu/h.
• Fully condensing vertical cylindrical counter-flow firetube design heat exchanger, with stainless steel construction and all welded design allowing constant system return temperatures as low as 40F°.
• 10:1 gas input turn-down ratio with sustained combustion characteristics throughout the entire range.
• Category II & IV venting.
• Fully factory fire-tested to obtain optimum combustion characteristics and to establish certified gas input rates.
• Safety and operating devices and controls fully configured, calibrated and factory tested.
• Complies with the energy efficiency requirements of the latest edition of the ASHRAE 90.1 Standard.
• Certified by CSA to the Requirements of ANSI Z21.13, And CSA 4.9.

Controls

The Valiant-FT Series II features an integrated Honeywell SOLA controller with a 7” touchscreen for remote set point or fire rate control (4-20mA or 0-10Vdc). It supports multi-pump operation, daisy-chain setup for up to 8 boilers, USB screenshot capture, and password-protected service access—all manageable from a single display.

Documents

• Engineering Submittal Sheet
• Installation Operation and Service Manual

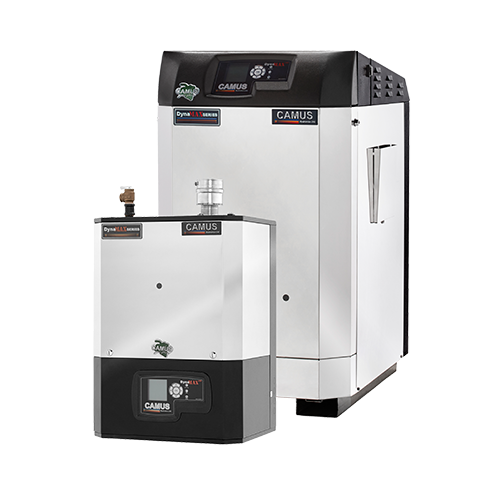

DynaMax Series

Description

The DynaMax is a gas fired condensing boiler with up to 97% efficiency.  Developed for residential and commercial applications, and available in floor or wall mount.

Features

• Up to 97% efficiency
• Approved plastic venting up to 100 feet
• Up to 150 PSI Relief Valves

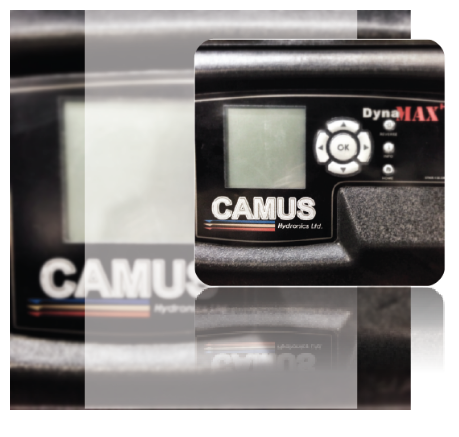

• Onboard digital operating control
• Fully modulating with 5:1 turndown
• Stainless steel heat exchanger
• Available Natural Gas or LP
• Thru wall exhaust vent (vertical or horizontal) with 3 air intake options:
  • outside air sealed direct
  • outside air
  • indoor air
• Extremely low NOx
• Fail Safe high limit w/Manual reset
• Flow proving
• Direct spark ignition
• Zero clearance to combustibles
• Boiler Circulating pump
• Neutralizer Kit
• Many more standard features
• Several Optional features available such as Rack kits, and more…

Wall Mount Models

• 020X ( 194 Mbtuh max. output )
• 025X ( 243 Mbtuh max. output )

Floor Mount Models

• 021X ( 194 Mbtuh max. output )
• 026X ( 243 Mbtuh max. output )
• 029X ( 291 Mbtuh max. output )
• 039X ( 387 Mbtuh max. output )
• 050X ( 485 Mbtuh max. output )
• 060X ( 582 Mbtuh max. output )
• 070X ( 679 Mbtuh max. output )
• 080X ( 776 Mbtuh max. output )

Documents

• Submittal Sheet – Combination
• Submittal Sheet – DHW
• Submittal Sheet – Heating
• Installation Operation and Service Manual
• Product Brochure

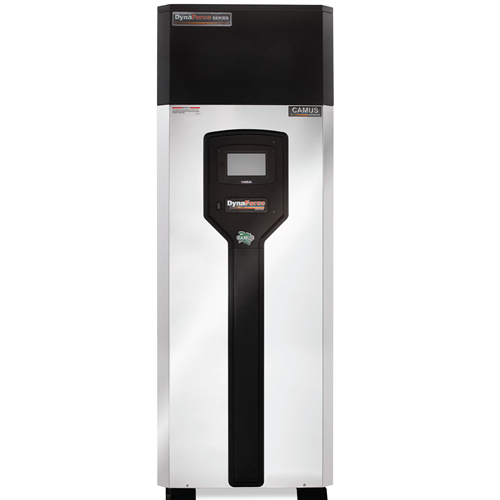

Dynaforce Series

Description

The fully modulating Dynaforce has an efficiency rating of up to 99% and features a vertical cylindrical heat exchanger which is constructed entirely of stainless steel.  The Dynaforce can be fired with either natural gas or propane.  Models range from 600,000 BTU up to 5 million BTU with a turndown ratio of up to 5:1.

Features

• 5:1 turndown ratio with a minimum 20% firing rate
• Single point adjustment for controlling air and gas
• 1 to 1 air/gas ratio for perfect modulation throughout
• Advanced intregrated Honeywell SOLA control with touch screen interface
• Cascade up to 8 individual appliances in daisy-chain formation
• Main burner test firing valve
• Proven pilot ignition on models above 3 million BTU/hr
• Direct ignition up to 2.5 million BTU/hr
• Return water temperatures down to 40°F
• Inlet regulator for incoming gas pressures up to 14″ w.c.
• Flue temperature monitoring
• Modbus RTU communication
• Flow switch, pressure relief valve, low gas pressure switch and flame failure contacts are standard on every Dynaforce.

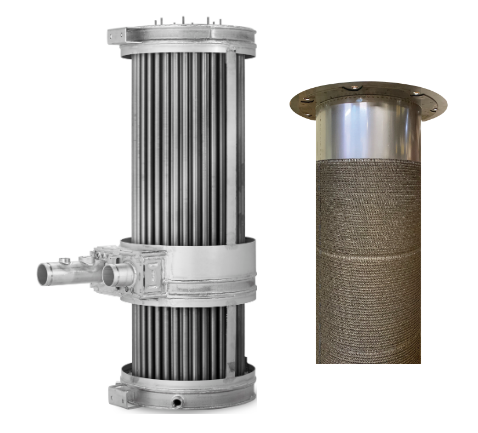

Burner & Heat Exchanger

The burner is 100% stainless steel, vertically mounted, and radial fired with knitted metal fiber construction, ensuring precise air/gas mixing and even heat distribution. It offers a 5:1 turndown ratio across the full modulation range.

The 439-grade stainless steel heat exchanger features a welded 12-pass, vertical counter-flow water tube design with integral finned tubes, rated for 160 psig. Designed for condensing operation with return temps as low as 40°F, it includes a condensate trap and drains.

Control Panel Highlights

The stainless steel radial-fired burner with knitted metal fiber ensures precise air/gas mixing, even heat distribution, and a 5:1 turndown ratio.

Its 439-grade stainless steel, 12-pass counter-flow heat exchanger is rated to 160 psig and supports condensing operation with return temps as low as 40°F, complete with condensate trap and drains.

Controls

The Dynaforce is built for modern building automation, featuring standard Modbus RTU for full BMS integration. Remote monitoring provides access to boiler status, temperatures, pump activity, error codes, and firing rates, with the ability to write setpoints and enable/disable functions. For expanded connectivity, Dynaforce supports BacnetIP, BacnetMSTP, MetasysN2, and LonWorks via the BTL-certified Fieldserver Protonode, offering Ethernet or RS485 connectivity for reliable, user-friendly performance.

Documents

• Dynaforce IOM
• Dynaforce Submittal – DHW
• Dynaforce Submittal – HTG
• Product Brochure

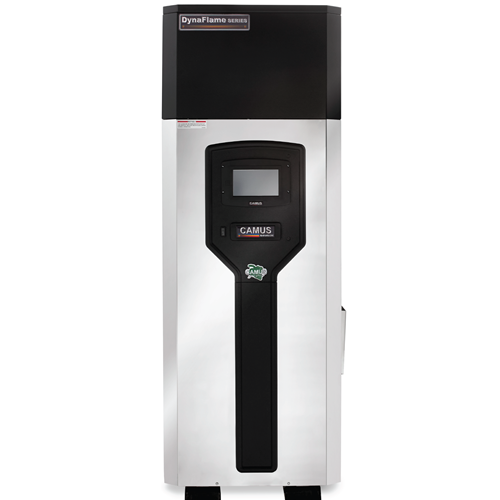

DynaFlame Series

Description

The DynaFlame is our leading edge product with models ranging from 500,000 BTU to 6 million BTU. All models are available in non-condensing, near-condensing or fully condensing modes. The primary heat exchanger is available in a choice of copper/cu-ni or stainless steel.

Features

• Models range from 500,000 BTU/hr up to 6 million BTU/hr
• Single point input adjustment for controlling air and gas
• 1 to 1 air/gas ratio for perfect modulation throughout
• Advanced digital control system with pin point accuracy
• Proven hot surface ignition with soft start, rumble free operation
• 4-20mA for setpoint or modulation control
• Proven pilot ignition on models 3 million BTU/hr and above
• 0-10 VDC converter (must be specified)
• Lead lag capability up to 8 boilers
• DHW sensor (domestic only) and system sensor (heating only)
• Modbus RTU communication
• Direct ignition up to 2.5 million BTU/hr
• Stainless steel secondary heat exchanger for condensing models
• Flow switch, pressure relief valve, low gas pressure switch and flame failure contacts are standard on every DynaFlame

Burner & Heat Exchanger

The stainless steel radial-fired burner with knitted metal fiber ensures precise air/gas mixing, even heat distribution, and up to a 5:1 turndown ratio.

The copper heat exchanger features a 4-pass, gasket-less design with bronze headers and copper or cu-ni tubes, rated for 160 PSIG and 250°F (210°F for DHW). The stainless steel heat exchanger offers a 6-pass, 439-grade welded design with finned tubes and 304/316L waterways, rated for 160 PSIG and 210°F. Both vertical designs allow easy installation, service access, and minimal unit spacing.

Control Panel Highlights

The Dynaforce™ features an integrated Honeywell SOLA controller with a 7” touchscreen for remote set point or fire rate control (4-20mA or 0-10Vdc). It supports multi-pump operation, daisy-chaining up to 8 boilers, USB screenshot capture, and password-protected service access—all from a single display.

Controls

The DynaFlame is built for modern building automation with standard Modbus RTU for full BMS integration. Remote monitoring provides access to boiler status, temperatures, pump activity, error codes, and firing rates, with the ability to adjust setpoints and enable/disable functions. For expanded connectivity, it also supports BacnetIP, BacnetMSTP, MetasysN2, and LonWorks via the BTL-certified Fieldserver Protonode, offering Ethernet or RS485 connections for reliable and user-friendly operation.

Documents

• Product Brochure
• Installation Operation and Service Manual

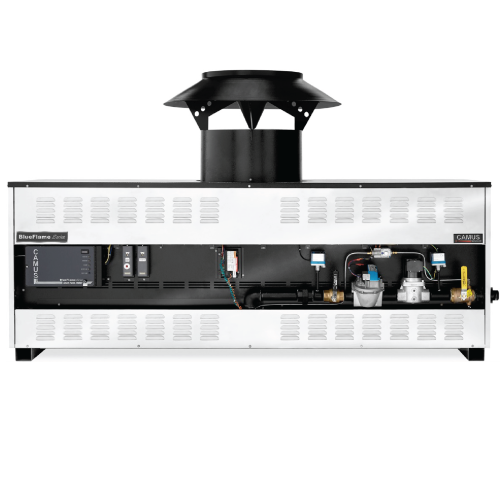

BlueFlame Series

Description

The BlueFlame is an atmospheric boiler for hydronic heating or hot water supply for commercial and industrial applications delivering thermal efficiencies of up to 83%.

Features

• Diagnostic lights help troubleshoot over the phone
• Optional digital temperature control is extremely accurate to minimize standby losses from temperature overshoot
• Adaptable to outdoor use
• Slide out stainless steel burner tray
• Slide out copper tube heat exchanger
• Easy side access for inspection of combustion chamber
• High temperature ceramic fibre tiles in combustion chamber
• Very smooth and quiet operation
• Suitable for venting in low ceiling applications with use of power venter and low profile hood efficiencies up to 83%
• Optional modulating firing mode available

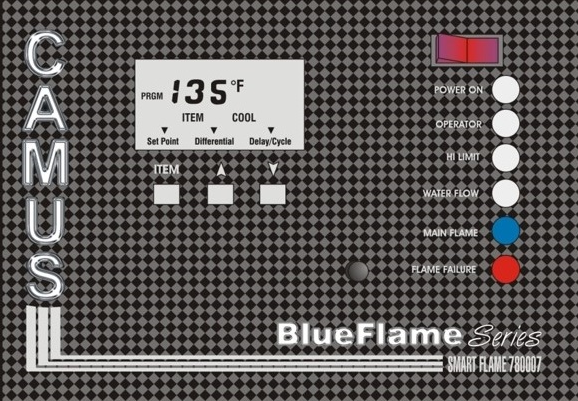

Controls

•  Incorporates auto reset high limit & operator
•  Multiple modes of operation for domestic hot water, hydronic heating and outdoor reset
• Firing Modes available: on/off, 2-stage and modulation (modulation is optional – controlled by the Honeywell T775A2009)
• Port for optional tank sensor
• Displays inlet/outlet temps and delta temperature
•  Flame failure feature
• Alarm contacts
• Displays total run hours
• Snap on Molex connection for easy service
•  Fusible link for over-voltage protection

Documents

• Submittal Sheet – DHW
• Submittal Sheet – Heating
• Installation Operation and Service Manual
• Product Brochure

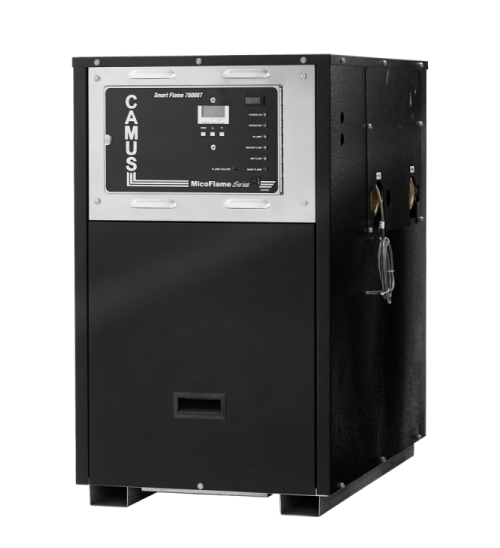

MicoFlame Series

Description

MicoFlame is a residential / light commercial water heater / heating boiler. The MicoFlame is sealed combustion and fan assisted, delivering thermal efficiencies of up to 85% non-condensing or 95% condensing.

Features

• Low NOx
• Copper Tube Heat Exchanger which meets lead-free regulations
• Durable metal fiber burner unaffected by high temps
• Suitable for use in negative pressure environments
• Complete diagnostic light package
• Easy access for inspection & cleaning of heat exchanger tubes
• Durable ceramic fibre refractory
• Simple to service with easy access to burner and fan

MicoFlame Series 1 Additional Standard Features

• For Residential/Light Commercial Installations
• Vents up to 50 feet horizontally with 50 feet of air intake duct
• Firing Modes: All models available in on/off and 2-stage.  Models 400 and up are also available in modulating (HTG only)

MicoFlame Series 2 and Grande Additional Standard Features

• For Residential/Light Commercial* and Commercial/Industrial**
• Vents up to 60 feet horizontally with 60 feet of air intake duct
• Firing Modes: Models 800-1000 on/off, 2-stage and modulating.  Models 1200-4000 2-stage, 3-stage, 4-stage and modulating (HTG only).

Models

• MicoFlame Series I
• MicoFlame Series II
• MicoFlame Series Grande

Documents

• MicoFlame Grande Installation Operation and Service Manual
• MicoFlame Series 2 Installation Operation and Service Manual
• MicoFlame Series Installation Operation and Service Manual
• Mod. MicoFlame Grande Installation Operation and Service Manual
• Mod. MicoFlame Series 2 Installation Operation and Service Manual
• Mod. MicoFlame Series Installation Operation and Service Manual
• Series 1 Submittal Sheet – DHW
• Series 1 Submittal Sheet – Heating
• Series 2 Submittal Sheet – DHW
• Series 2 Submittal Sheet – Heating
• Series Grande Submittal Sheet – DHW
• Series Grande Submittal Sheet – Heating

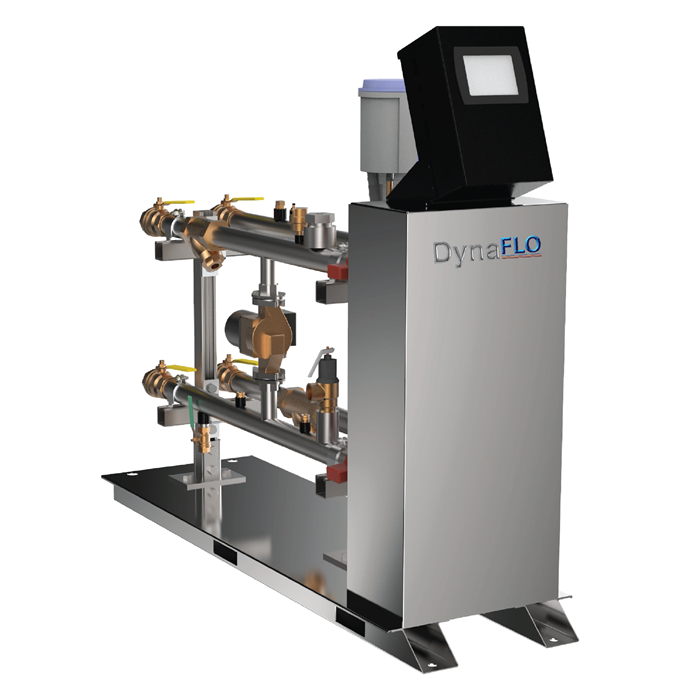

DynaFLO

Description

The DynaFLO is a prepackaged domestic hot water system with unmatched outlet temperature accuracy and one of the smallest footprints in the industry—perfect for tight boiler rooms and modern condensing boilers.

Size & Options

Available in 15 models up to 340 GPM (60°F ΔT), DynaFLO comes with a 3-way motorized valve, precision PID control, and multiple material options.

Ultra-Precise Control

Under steady flow, outlet temperature stays within ±1°F of setpoint—an industry first!

Patented IntelliFLO Technology

Camus’ patented IntelliFLO (U.S. Patent No. 11,313,588) maintains outlet temperature within ±2°F even under sudden load drops, preventing dangerous spikes.

Effortless Operation

No manual tuning required. PID parameters and IntelliFLO settings self-adjust to deliver consistent DHW accuracy—even during harsh load swings.

Features

• One of the smallest footprints in the industry < 6.5 ft².
• DHW side pipping material options: Stainless Steel and Copper
• Boiler side pipping material options: Stainless Steel, Black Iron or Copper
• Stainless steel plate heat exchanger – low maintenance as there are no gaskets
• Choice of double wall or single wall heat exchanger
• Victaulics for easy removal and maintenance of the heat exchanger
• 3-way electronic control valve
• Inlet Strainers on boiler and DHW side
• Anti-Scaling circulation pump
• Pressure relief valve
• T&P valve (Optional)
• Boiler side differential pressure gauge (Optional)
• System isolation valves
• High Limit Switch mounted on DHW outlet
• Air vent
• Precise control system that maintains DHW outlet temperature to within +/-1°F of setpoint under steady flow conditions – Most accurate in the industry!
• Patent pending IntelliFLO Technology maintains DHW outlet temperature (+/-2°F of setpoint) under load fluctuations thereby preventing sudden temperature spikes-– (Optional)
• No need for PID fine tuning or any control related parameter adjusting
• Full color 4.3” user friendly HMI
• Modbus communications
• Remote operation capability
• Audible and visual alarms
• Dedicated alarm contacts
• Data-Logging
• Plug and play installation (120VAC Single Phase)
• Fuse protected
• Separate Pump On/Off switch
• Glycol system compatible*

Documents

• Brochure
• Dimensions
• Electrical Diagram
• Installation Operation and Service Manual
• Typical Specifications for DynaFLO

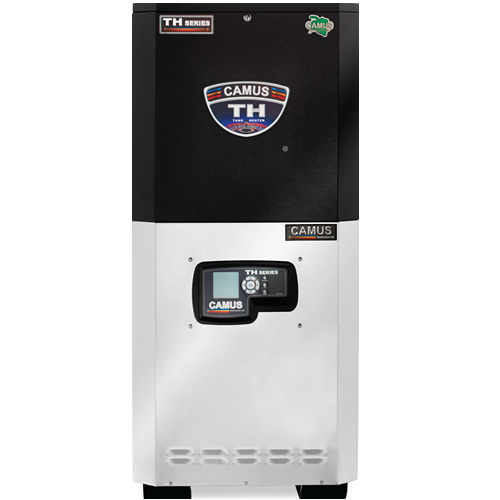

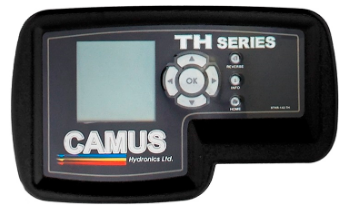

TH Series

Description

A gas-fired condensing water heater with up to 92% efficiency and ultra-low NOx. Models range from 200,000–500,000 BTUH and feature a stainless steel storage tank backed by a 10-year warranty.

Features

• Up to 92% efficiency
• Approved for plastic venting up to 100 feet
• 150 PSI temp. & pressure relief valve
• Onboard integrated digital operating control
• Fully modulating with 5:1 turndown
• Stainless steel heat exchanger rated at 160 PSIG maximum allowed working pressure
• Available in Natural Gas or L.P.
• Thru wall exhaust vent (vertical or horizontal) with 3 air intake options
  1. outside air sealed direct
  2. outside air
  3. indoor air
• Extremely low NOx
• Fail Safe high limit w/manual reset
• Water flow proving
• Direct spark ignition
• Zero clearance to combustibles
• Bronze circulating pump
• Stainless steel storage tank w/10 yr. warranty, rated 160 PSIG maximum allowed working pressure
• Neutralizer kit

Burner & Heat Exchanger

The TH Series burner is a 100% stainless steel, vertical-mounted radial-fired design with knitted metal fiber construction, delivering precise combustion and a 5:1 turndown ratio across the full modulation range.

Its high-efficiency, all-welded stainless steel heat exchanger (160 PSI) supports 40°F return temperatures for full condensing operation. Models 202–252 use a MONO design, while 292–502 feature a DUO design, both ensuring counterflow for maximum energy transfer.

Each tube wraps the shell four times for optimal heat capture, while flue gases are safely discharged through a Camus adapter for PVC, CPVC, or stainless venting. A built-in condensate spillway directs condensate to a stainless steel collection box.

Control Panel Highlights

• Multi-line LCD display
• User and Installer access
• Hydronic heating with outdoor rest and/or remote enable signal
• Instantaneous domestic hot water priority with plate heat exchanger
• Domestic hot water priority with direct/indirect storage tank utilizing a DHW sensor or aquastat
• Analog input signal (4-20mA or 0-10Vdc)
• Lead lag operation up to 8 boilers
• Standard Modbus communication
  • available with BacnetMSTP, BacnetIP, LonWorks or MetasysN2 comm. protocol
• DHW pump contact
• Boiler modulates to shut down on flue gas high temperature detection
• Alarm contacts
• System sensor is included
• 15-item error lockout history
• 15-item alert history
• Fahrenheit/Celcius temperature readout
• UL353 approved outlet high limit

Documents

• Engineering Submittal Sheet
• TH Series Installation and Operation Manual

VTech

Description

The VTech water heater delivers top efficiency with industry-leading low emissions. Its fully modulating, all-stainless steel design resists corrosion, while advanced combustion and control systems ensure simple, reliable operation. Backed by a 10-year warranty, VTech offers performance and peace of mind.

Features

• AHRI Efficiencies of up to 96%
• Fully modulating with a 5:1 turndown
• Integrated digital operating control
• 160 PSIG M.A.W.P. stainless steel storage tank
• All stainless steel water surfaces
• Extremely low noise level of operation
• Available in natural gas or propane
• Left or right side water connections
• Stack temperature limit
• Proven hot surface ignition
• Integrated UL353 approved fail safe manual reset high limit @ 195°F
• 150 PSI temperature & pressure relief valve
• Thru wall exhaust vent (vertical or horizontal) with 3 intake options
  1. Outside air sealed direct
  2. Outside air
  3. Indoor air
• PVC/CPVC/Stainless Steel/PPE vent options
• Suitable for Category II and IV installations

Burner & Heat Exchanger

The VTech’s stainless steel, radial-fired burner with knitted metal fiber ensures precise combustion and a 5:1 turndown ratio across the full range. Its single-pass fire-tube heat exchanger, built from 304L/316L stainless steel with 1.5” oval tubes, maximizes heat transfer, reduces maintenance, and extends system life.

Control Panel Highlights

•  User configurable multi-line backlit LCD display (Temperature readings,
    status, heater response, run hours, date and time)
•  Secure access for both the user and installer
• Heater shuts down on flue gas high temperature detection
• Alarm contacts
• 15 error and lockout history with time & date stamp
• Real time flame signal
•  Digital safety annunciation with fault rectification
• Unique programming card allowing for simplified setup and support
• Maximum operating setpoint of 190ºF

Documents

• Submittal Sheet
• Installation Operation and Service Manual
• Brochure

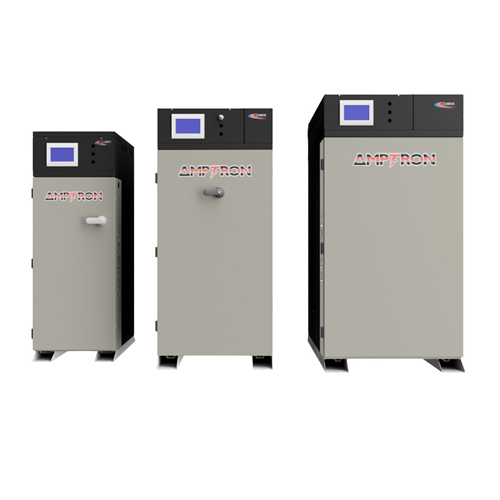

Amptron Electric Boiler

Description

The Amptron is Camus’ newest zero-emissions, eco-friendly boiler for commercial hydronic heating. With a compact footprint and doorway-friendly design, it’s ideal for small spaces and retrofit applications.

Features

• Optional PLC & HMI with power monitoring
• Optional SCR for infinite modulation
• Vertical heat exchanger with replaceable elements
• Spider-supported bundles prevent hot spots
• Novel baffle design for element longevity & even temperature distribution

PLC Functions

• PID control loop
• Integrated safety chain (high limit, no flow, etc.)
• Power monitoring & BMS-ready remote operation
• VFD pump control

Models

• 90 kW
• 180 kW
• 270 kW
• 360 kW
• 450 kW
• 540 kW

* * All Available in 240, 480, or 600 volts

Documents

• Amptron Submittal

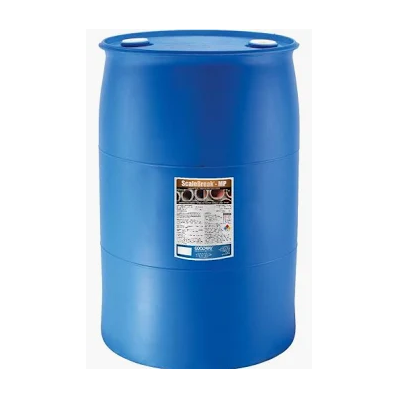

Clean In Place De-Scaling

Description

The CIP 40 and CIP 92 are heavy-duty clean-in-place systems built with polyethylene and acid-proof components. They remove hard water scale from copper or stainless-steel boilers and water heaters, extending equipment life and performance. Paired with the CIS 5 biodegradable descaler, these systems quickly dissolve calcium, lime, rust, and other deposits, which are then safely flushed away. Available in 5-gallon containers or larger quantities.

Features

• Acid proof pump and fittings
• Innovative flow reversal valve
• 15 or 21 GPM pump (depending on model)
• C40 volumes 1-50 and C92 10-100 gallons
• Compact design for easy transport and storage
• 10 or 15 gallon reservoir tank (depending on model)
• Venting cap for closed systems

When to Clean Your Camus Unit:

Preventative maintenance depends on water quality, but cleaning may be needed if you notice:

• Longer hot water cycles
• Reduced hot water capacity
• Higher gas usage
• Rumbling/kittling sounds
• Unusually high stack temperatures

Models

• CIS 5
• CIP 40
• CIP 92
